Home / PRODUCTS / 12V / 12V120Ah LiFePo4 Battery

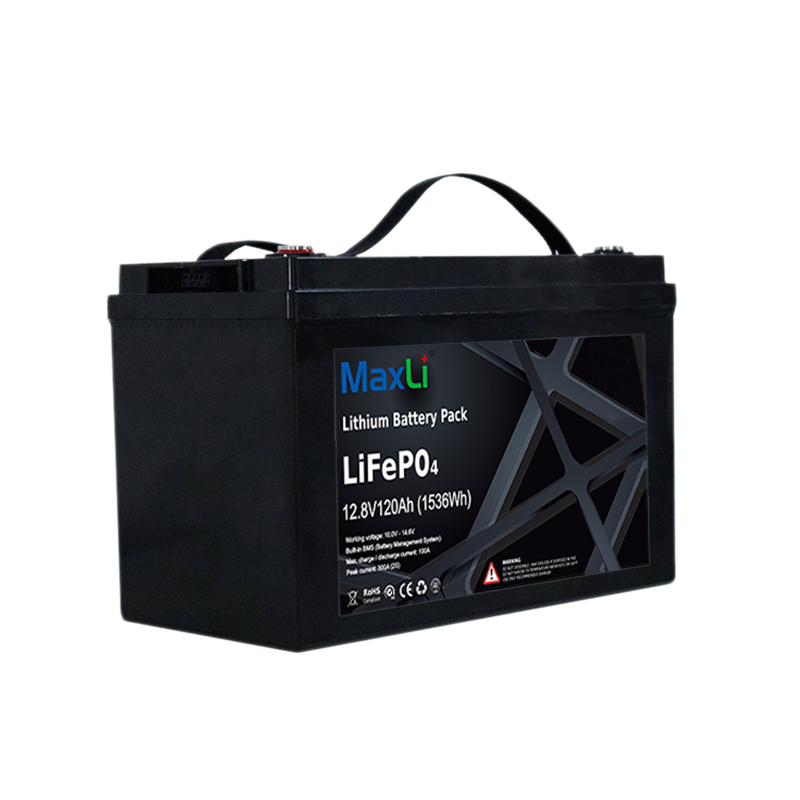

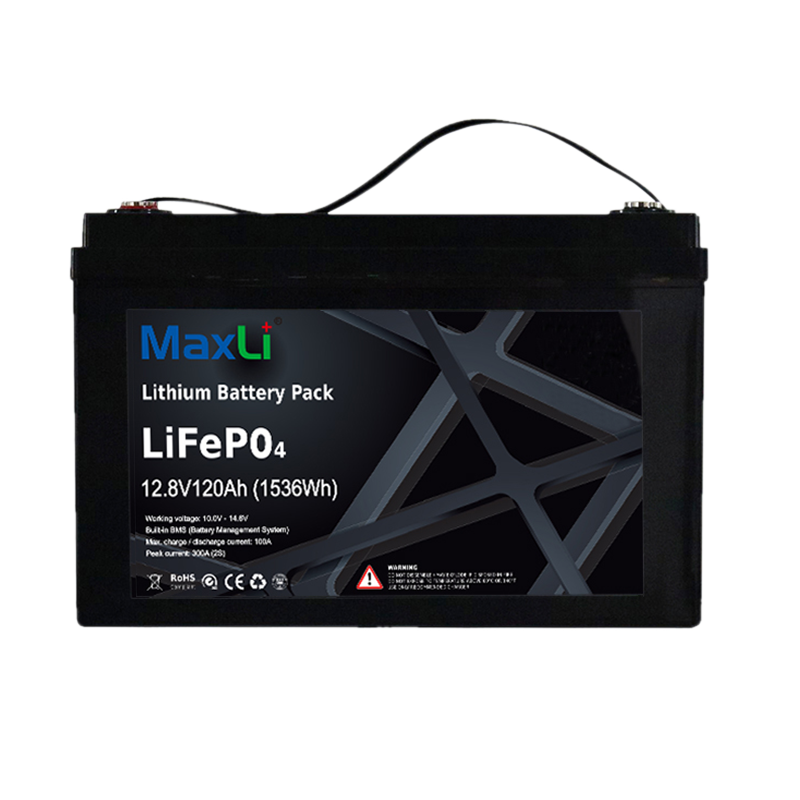

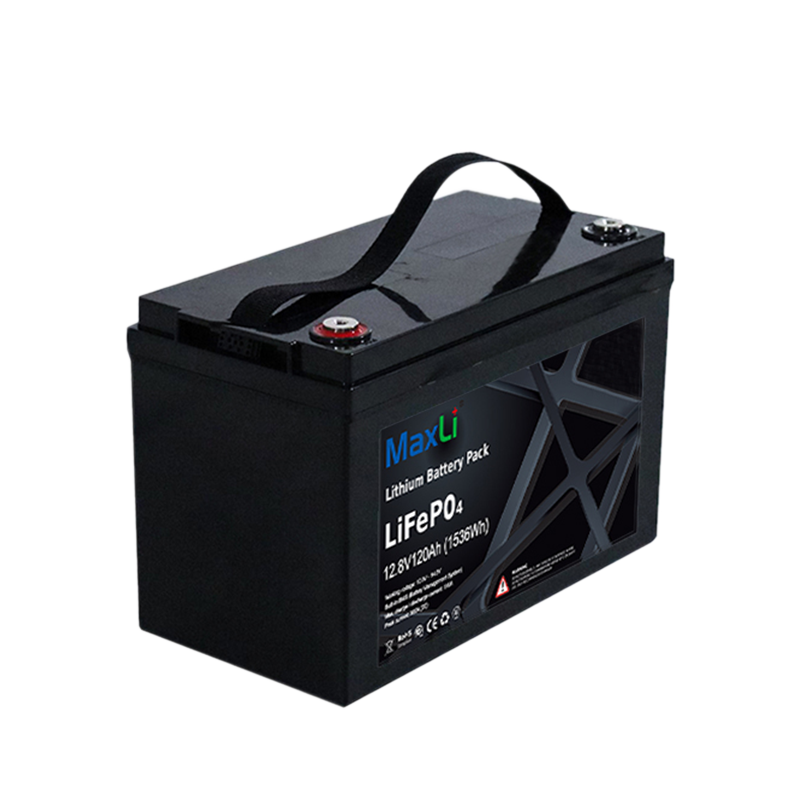

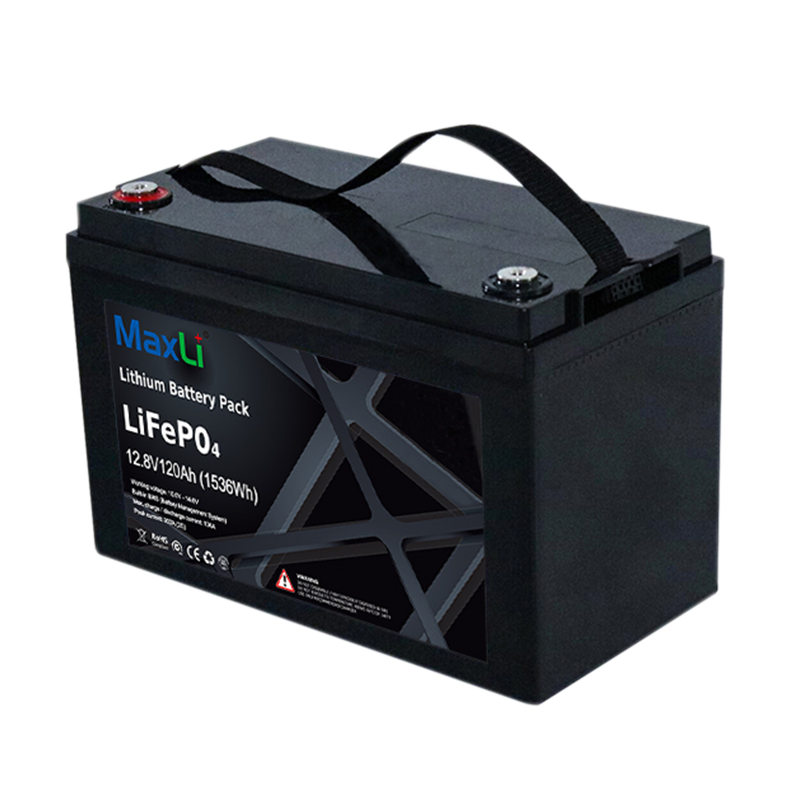

12V120Ah LiFePo4 Battery

Inquire Now Prev Product Next Product

Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.

Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.

Wider Temperature Range: -20℃~60℃.

Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	120Ah
	Energy	1536Wh
	Internal Resistance	≤ 20mΩ
	Cycle Life	≥3000cycles @1.0C 100%DOD
	Months Self Discharge	＜3%
	Efficiency of Charge	100%@0.2C
	Efficiency of Discharge	96~99%@0.5C
Standard Charge	Charge Voltage	14.4±0. 1V
	Charge Mode	0.2C to 14.4V,then 14.4V,charge current to 0.02C(CC/CV)
	Charge Current	50A
	Max. Charge Current	120A(150A BMS is available)
	Charge Cut-off Voltage	14.6V±0. 1V
Standard Discharge	Continuous Current	100A
	Max. Pulse Current	450A(<3s)
	Discharge Cut-off Voltage	10.0V
Environmental	Charge Temperature	-20 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
	Water Dust Resistance	IP65
Mechanical	Cell & Method	32700 6 Ah 4S20P
	Shell material	ABS （group24/31 DIN5）
	Dimensions (in./mm.)	330173214mm
	Weight (lbs./kg.)	Approx:13.5Kg
	Terminal	M8
	Communication	BT-App control is optional
	LCD display	Optional

Request a Quote
